Creating meshes with the mesh_gen object

There is a new (2026) interface to cr_trig_create, crtomo.mesh_interface.CRTomoGMSHMeshGenerator.

This example present various ways to use this generator class.

Note

You can access the generator class in two ways: from crtomo.mesh_interface import CRTomoGMSHMeshGenerator or using the top-level module crtomo: from crtomo import CRTomoGMSHMeshGenerator. There is also an already initialized instance of the mesh loaded as crtomo.mesh_gen. In most cases, this instance is the easiest way to use the generator.

The top level crtomo import suffices for most tasks

import crtomo
import numpy as np

Defining the mesh boundaries and electrode positions

Note

Always work clockwise when denoting boundary nodes!

# define the electrode positions
electrodes = np.array((
    (0, 0),
    (1, 0),
    (2, 0),
    (3, 0),
))

# define the boundary geometry
# the last number indicates the type of boundary element towards the next node
# 12: Neumann no-flow boundaries (for surface boundaries)
# 11: mixed boundary types (subsurface boundaries)
boundaries = np.array((
    (-1, 0, 12),
    (0, 0, 12),
    (1, 0, 12),
    (2, 0, 12),
    (3, 0, 12),
    (4, 0, 11),
    (4, -2, 11),
    (-1, -2, 11),
))

Mesh Generation

mesh = crtomo.mesh_gen.gen_mesh(
    boundaries,
    electrodes,
    char_lengths=[
        0.5,
        0.45,
        0.45,
        0.45,
    ],
)

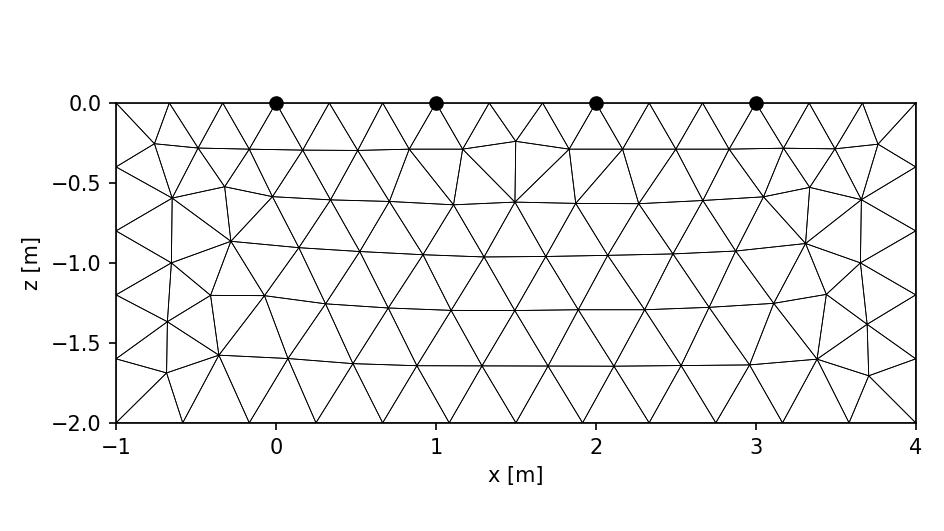

_ = mesh.plot()

Calling the mesh generation routines...
   done
This grid was sorted using CutMcK. The nodes were resorted!
Triangular grid found
